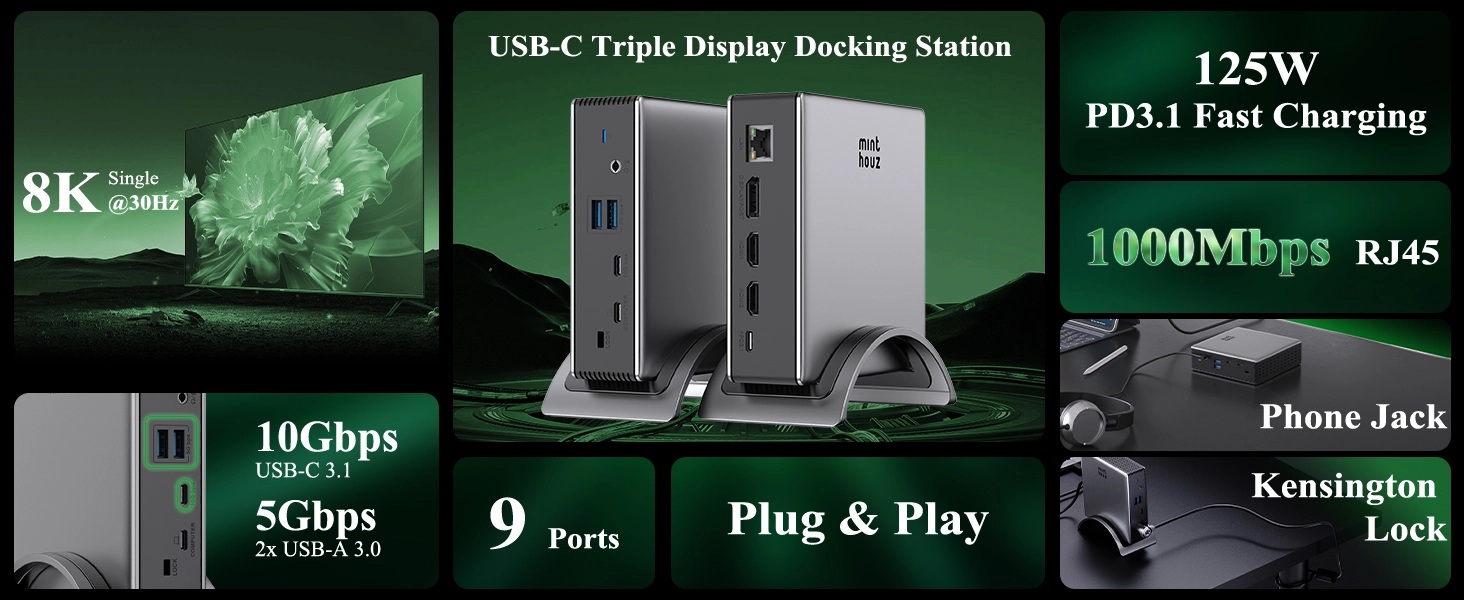

【All-in-One Connectivity Hub】The Minthouz 9-in-1 docking station features an 8K DP port, two 8K HDMI ports, a Gigabit Ethernet port, two 5Gbps USB-A 3.2 Gen1 ports, a super-speed 10Gbps USB-C port, a TRRS 4-pole audio jack for headphones or mic input, and a secure Kensington lock hole. Come and elevate your workspace with the MT-UMD27 Pro’s expansive connectivity!

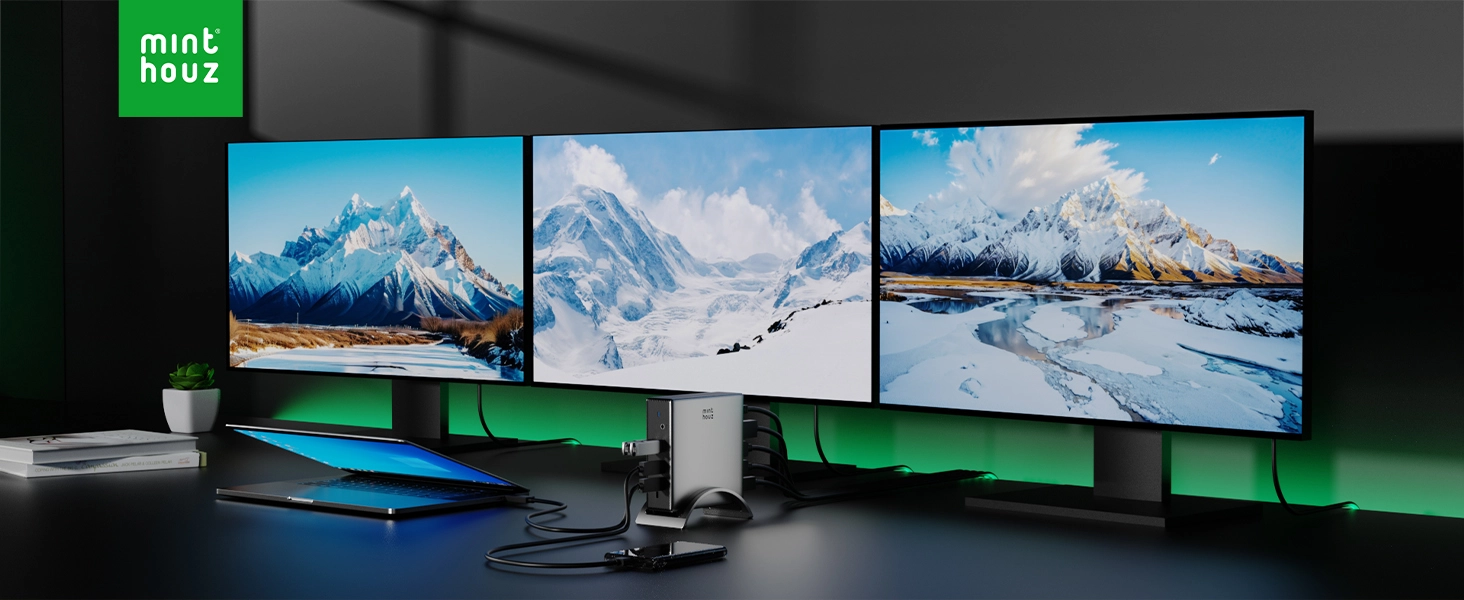

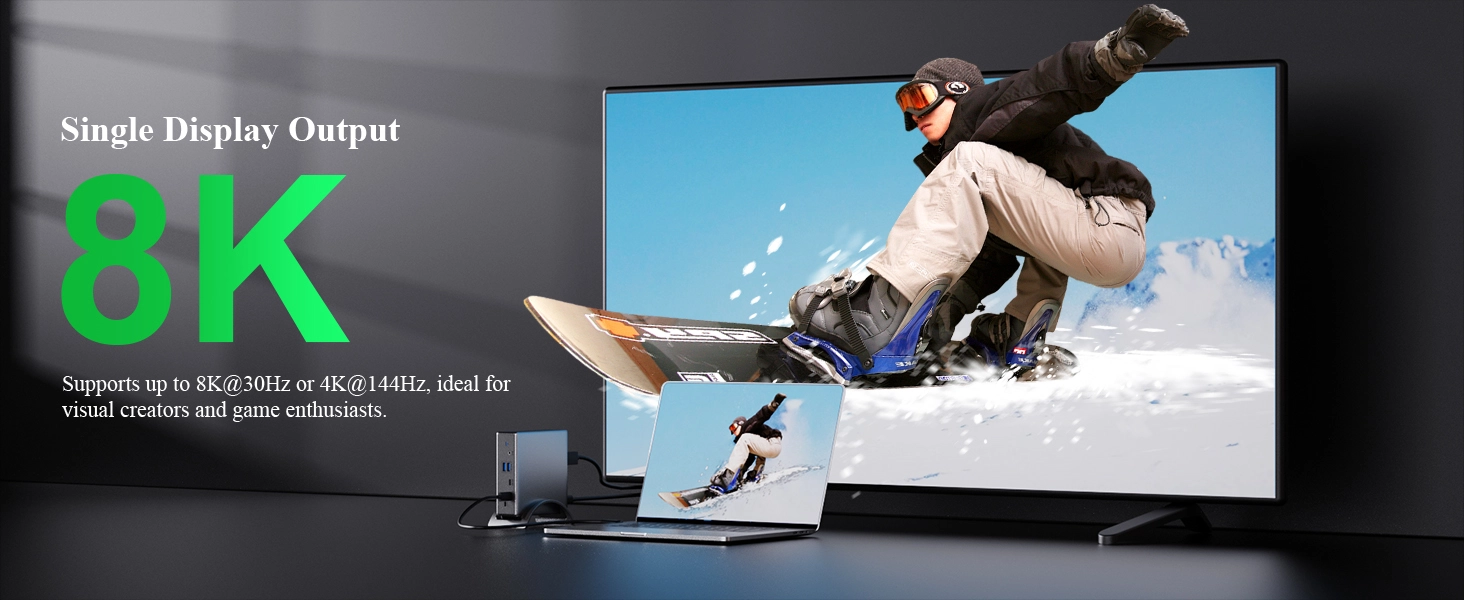

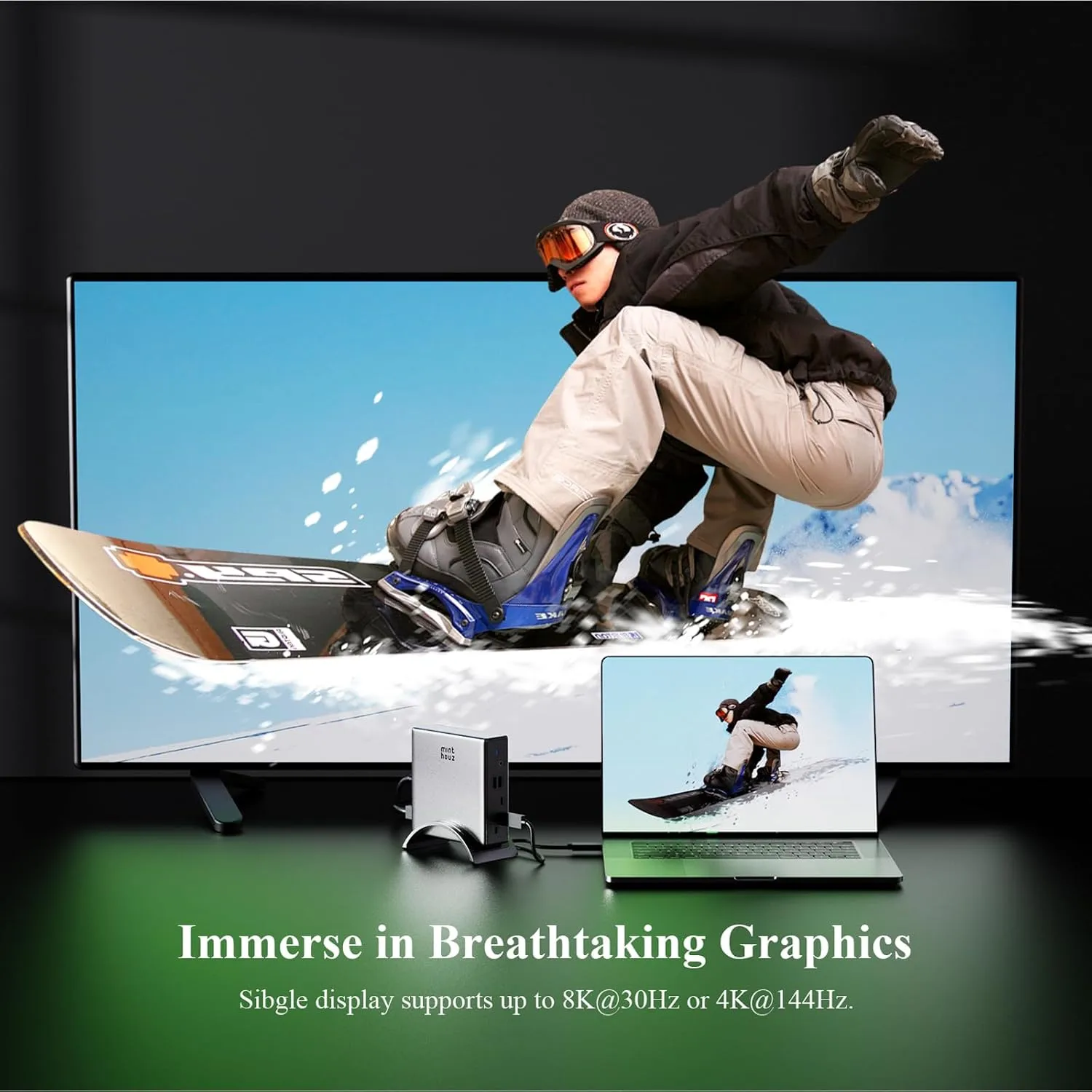

【Triple 4K Display & 8K Support】Unleash ultra-high resolution & triple display power with the 8K USB-C dock. Drive a single 8K@30Hz/4K@144Hz screen(Windows) or triple 4K@60Hz monitors(Windows/Mac) via DP1.4/DSC. Ideal for stock traders with multi-chart views or video editors working on 4K timelines. NOTE: Windows extends to three distinct displays (ABCD); Mac mirrors two screens while extending one (ABBB).

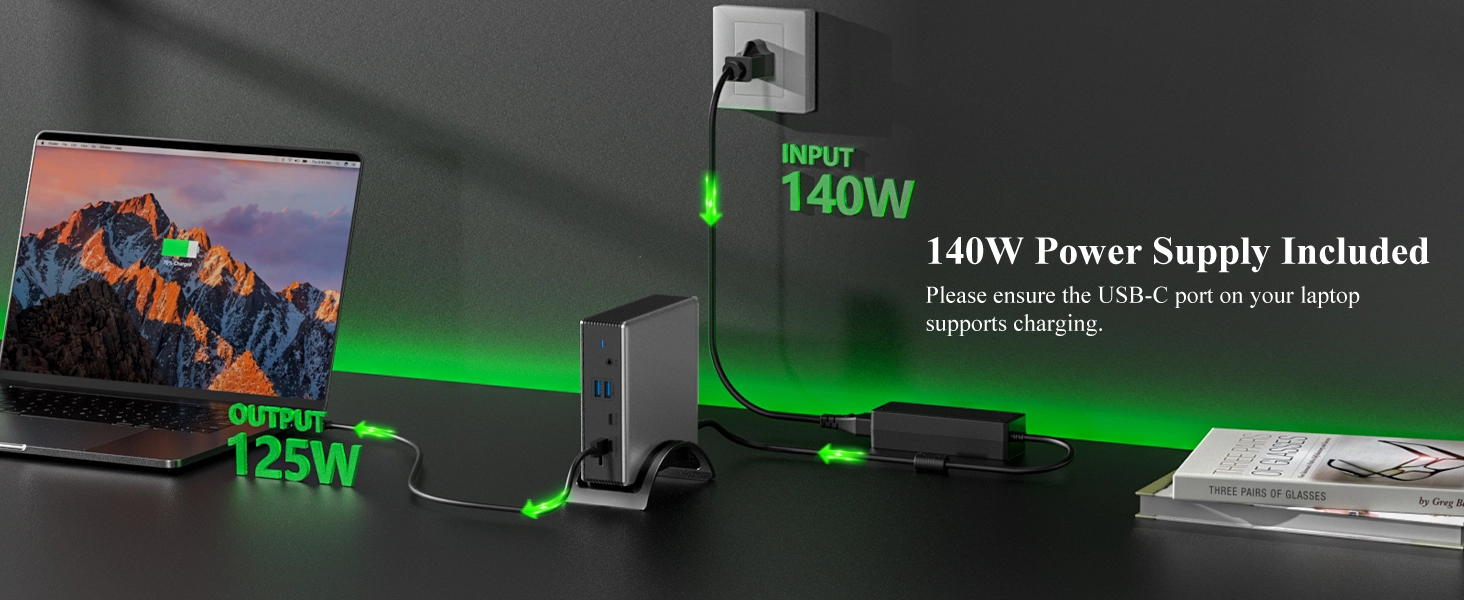

【140W Fast Charging & PD 3.1】Say goodbye to battery anxiety with the robust 140W USB-C PD 3.1 input, delivering efficient upstream charging at 125W to keep powerful devices like MacBook Pro or high-end Windows laptops fully juiced while you work, game, or create. The included PD3.1 GaN power adapter ensures fast and safe charging. NOTE: Please ensure the USB-C port of your host supports charging.
【Broad Compatibility & Plug-and-Play】Works with Windows 7-11, macOS 11+, Chrome OS, Linux, iPadOS, Android (OTG), iOS, HarmonyOS, supporting any USB-C device with video output and charging capabilities. Enjoy hassle-free usage with no driver installations required—simply plug and play! HDCP supported, enabling playback of copyrighted content on Blu-ray, Netflix, Prime, iTunes, Hulu, etc.

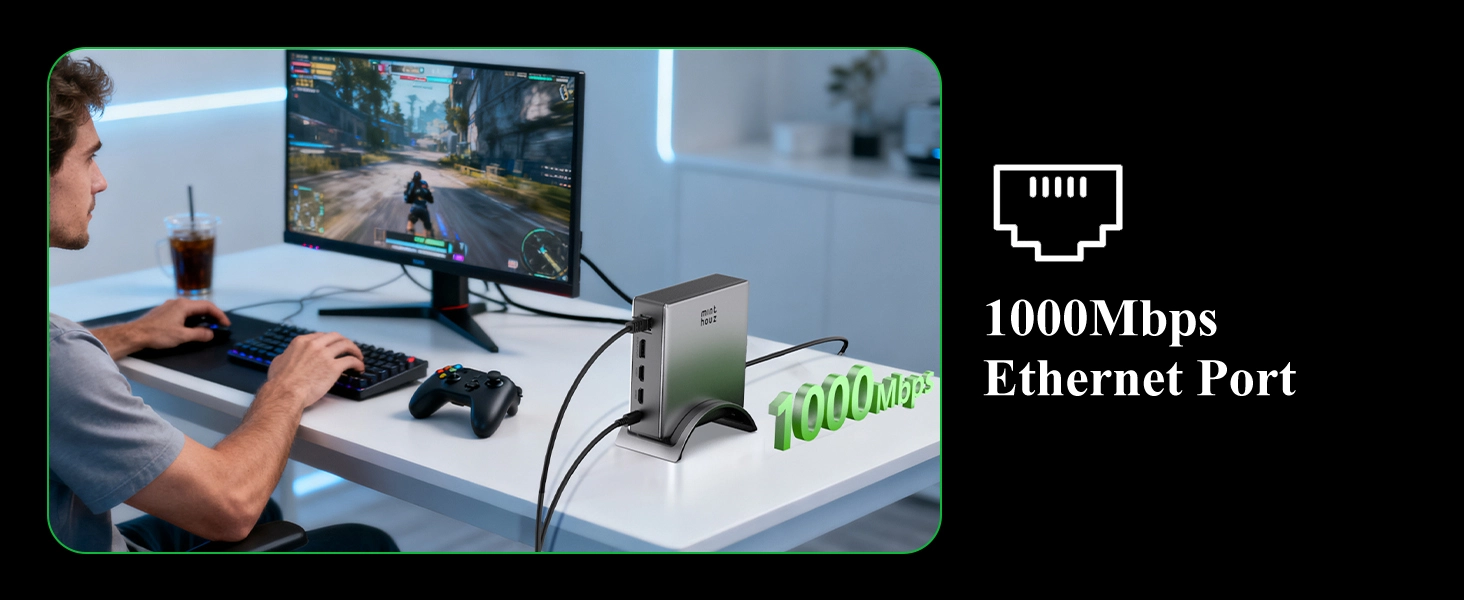

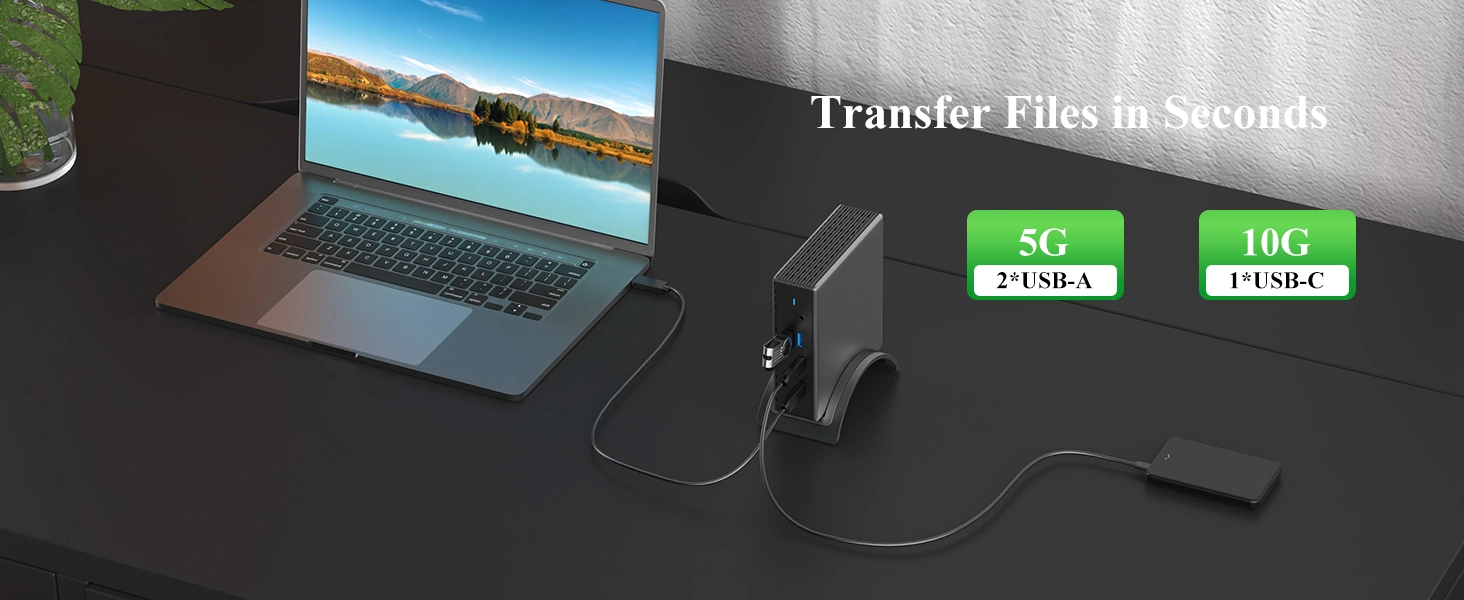

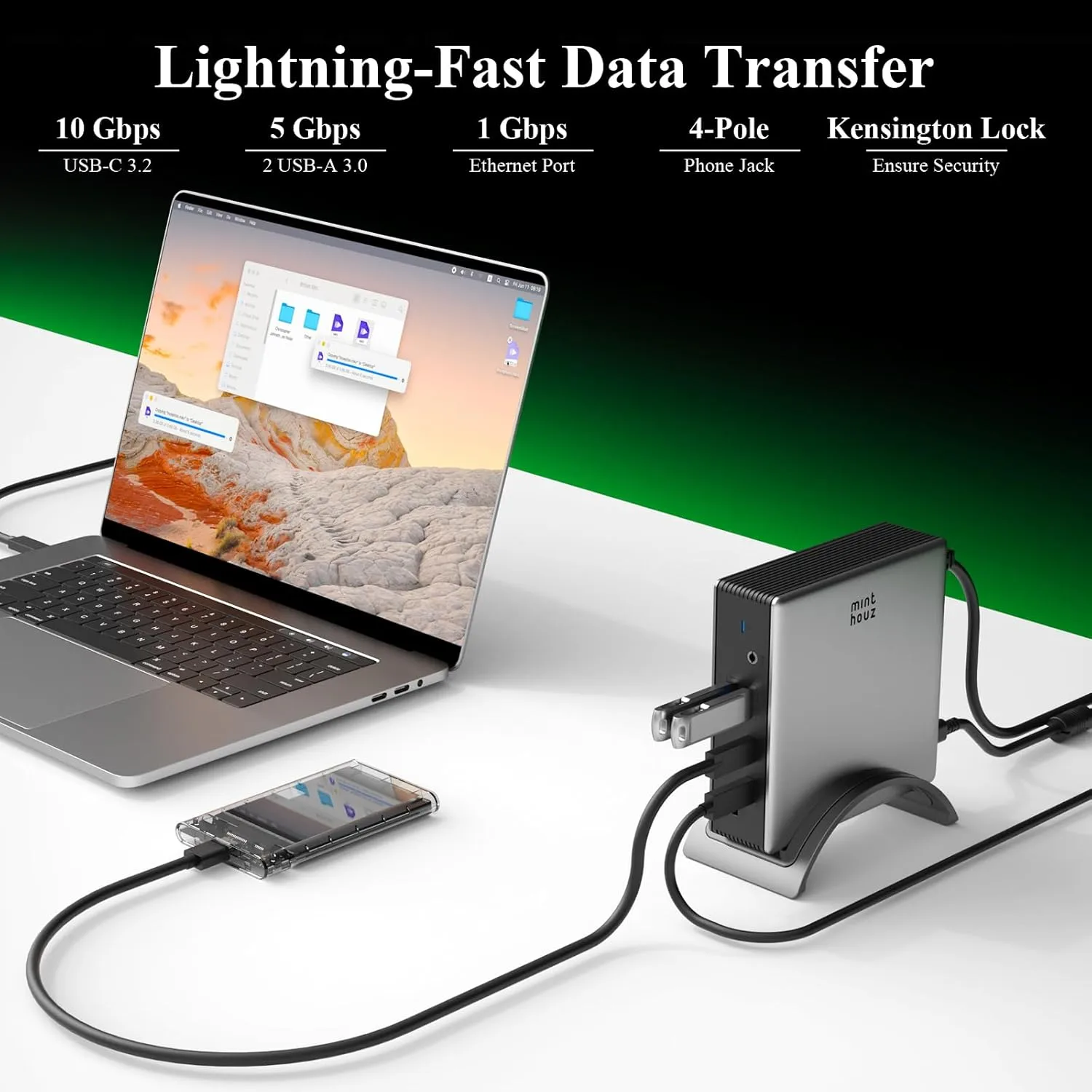

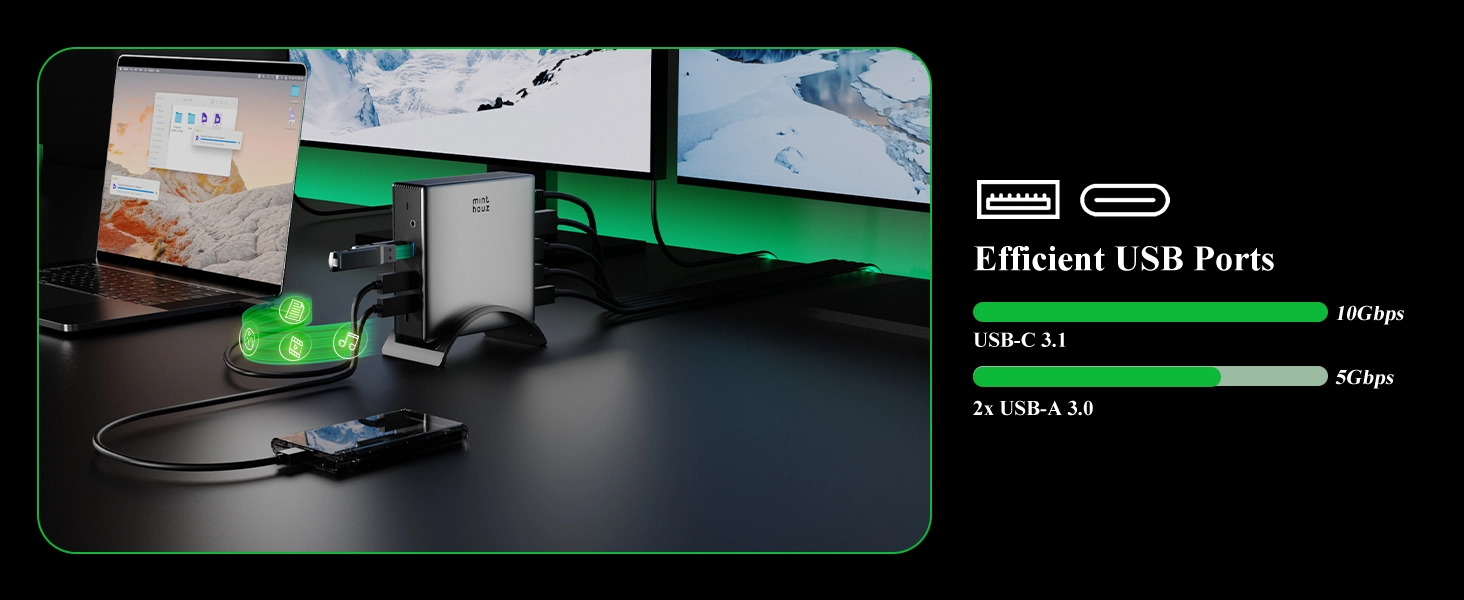

【Gigabit Ethernet & High-Speed USB Ports】The Gigabit Ethernet port for wired internet speeds up to 1Gbps ensures lag-free streaming, fast downloads, and stable multiplayer gaming—a lifesaver when Wi-Fi fails in home offices or studios. The 10Gbps USB-C and two 5Gbps USB-A ports allow for easy multitasking, effortlessly accommodating both modern USB-C devices and legacy USB-A gadgets for a versatile and efficient docking solution.
Minthouz USB-C Triple Display Docking Station: Ultimate 8K Expansion Hub with 140W Turbo Charging
The MT-UMD27 Pro is your go-to solution for productivity and entertainment, engineered with industry-leading technology to deliver unparalleled performance. With its robust specs—including support for resolutions up to 8K@30Hz and 4K@144Hz, versatile HDMI and DisplayPort outputs, and high-speed PD3.1 charging—it revolutionizes how you work, game, and create. Ideal for users in graphic design, video editing, and multi-tasking environments, this dock's wide compatibility and included accessories ensure an excellent experience right out of the box.

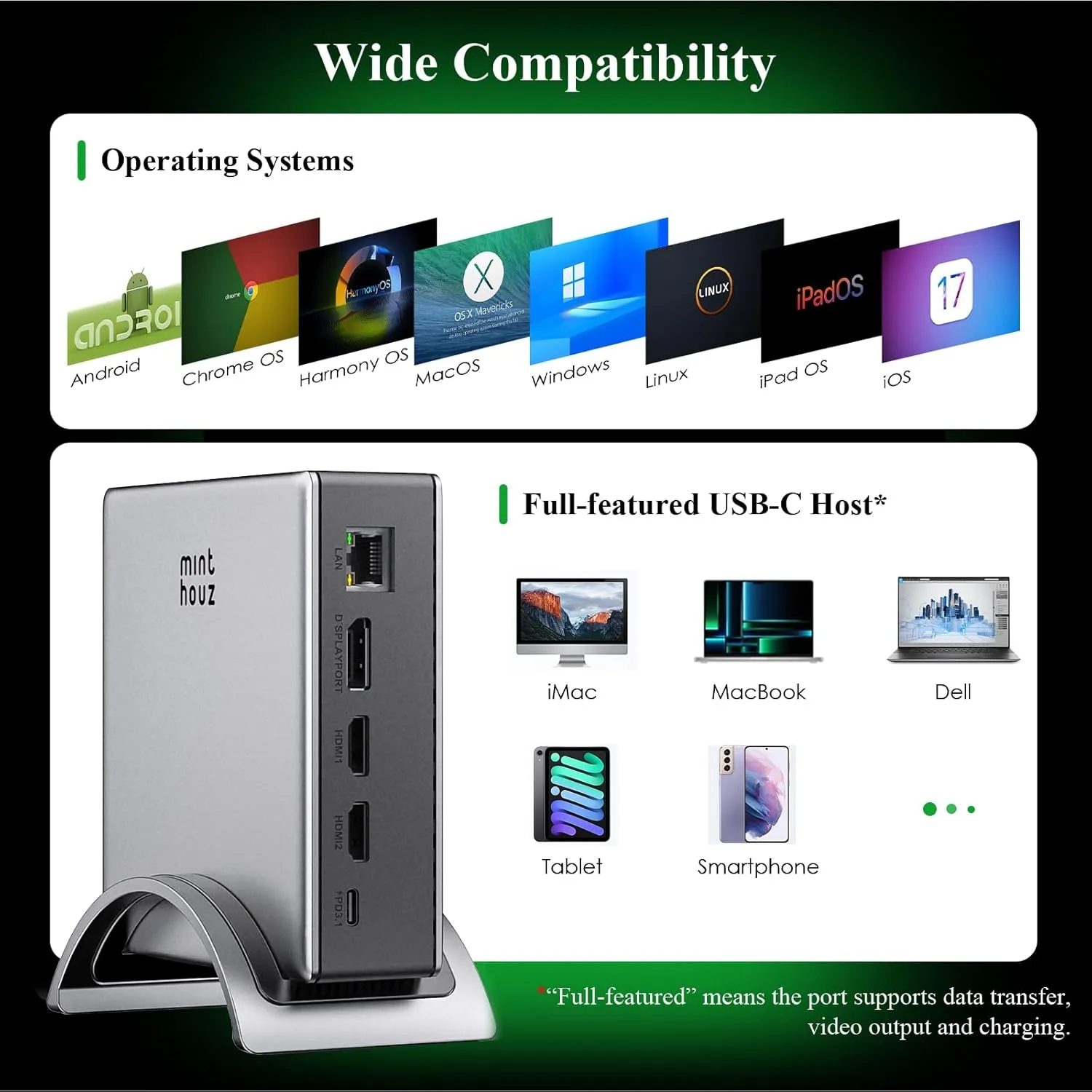

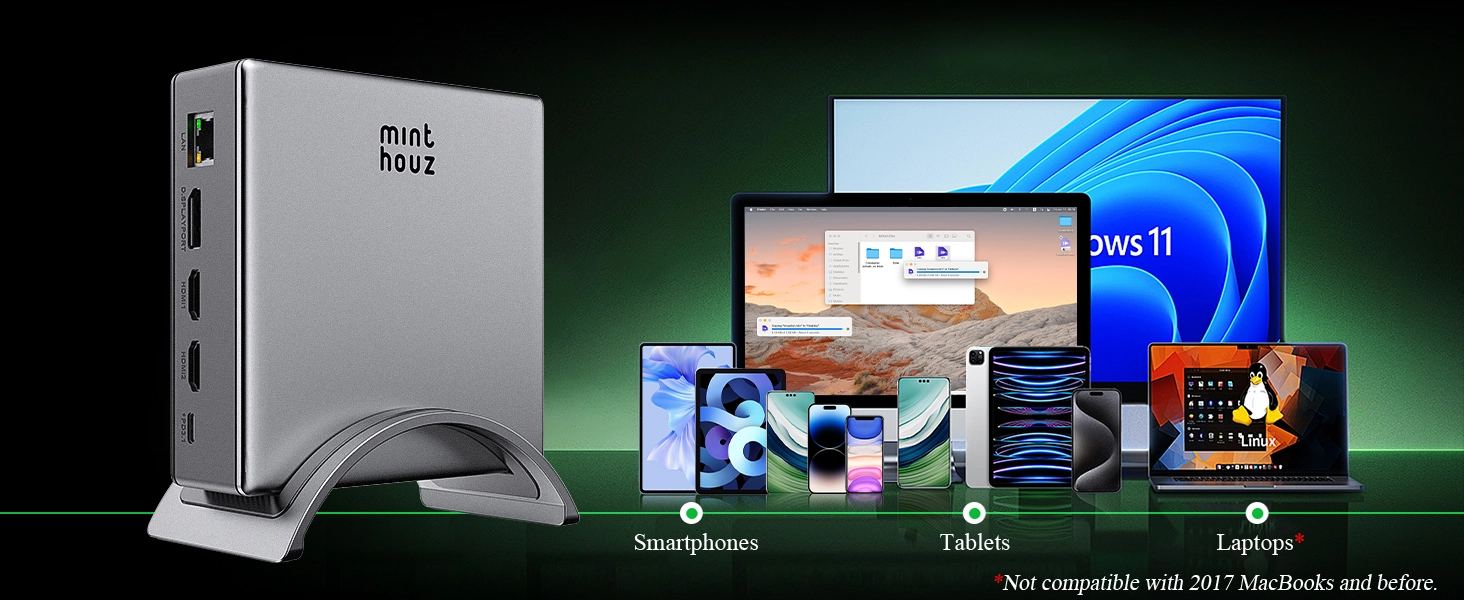

Systems/ Devices Compatibility
Plug and play on Windows 11/10/8.1/8/7, Mac OS 11 or later, Chrome OS, Linux, iPad OS, Harmony OS, Android, iOS.
Works with your USB-C Desktop PCs, Laptops, Tablets/Mobile Phones(OTG function required). The USB-C port on the host should support video output and charging to enjoy the full function.
How to Confirm if the Type-C Port of Your Laptop Supports Video Output and Charging?
Step 1: Please check the model of your laptop, it should be on the back of the label;
Step 2: Search “brand + the model number of the device + manual” in Google, for example: “asus ux435 manual”;
Step 3: Check the manual and navigate to the view and check the type-c specification, if it states it supports power delivery which means it supports charging. If it states the type-c port supports display which means it could support video output. If the specification states bandwidth the type-c port supports only, which means the type-c port might not support video output and charging. You could also contact the manufacturer to confirm that.
Multiple Display Resolution (Max. Resolution)
Notice: Please make sure the type-C port of your host supports video output.
For Windows OS(some laptops only support 3 monitors due to their graphic card limit)
1)Single Display (DP/HDMI1/HDMI2):
DP1.2: DP/HDMI1/HDMI2: 3840x2160@30Hz
DP1.4: DP/HDMI1/HDMI2: 3840x2160@60Hz
DP1.4 & DSC: DP/HDMI1/HDMI2: 7680x4320@30Hz or 3840x2160@144Hz
2)Dual Display (DP+HDMI1/2 or Dual HDMI):
DP1.2: 1920x1080@60Hz+1920x1080@60Hz
DP1.4: 2560x1440@60Hz+2560x1440@60Hz
DP1.4 & DSC: 3840x2160@60Hz+3840x2160@60Hz
3)Triple Display (DP+HDMI1+HDMI2):
DP1.2: 1920x1080@60Hz+1920x1080@60Hz+lower than 1080P
DP1.4: 1920x1080@60Hz+1920x1080@60Hz+1920x1080@60Hz
DP1.4 & DSC: 3840x2160@60Hz+3840x2160@30Hz+3840x2160@30Hz

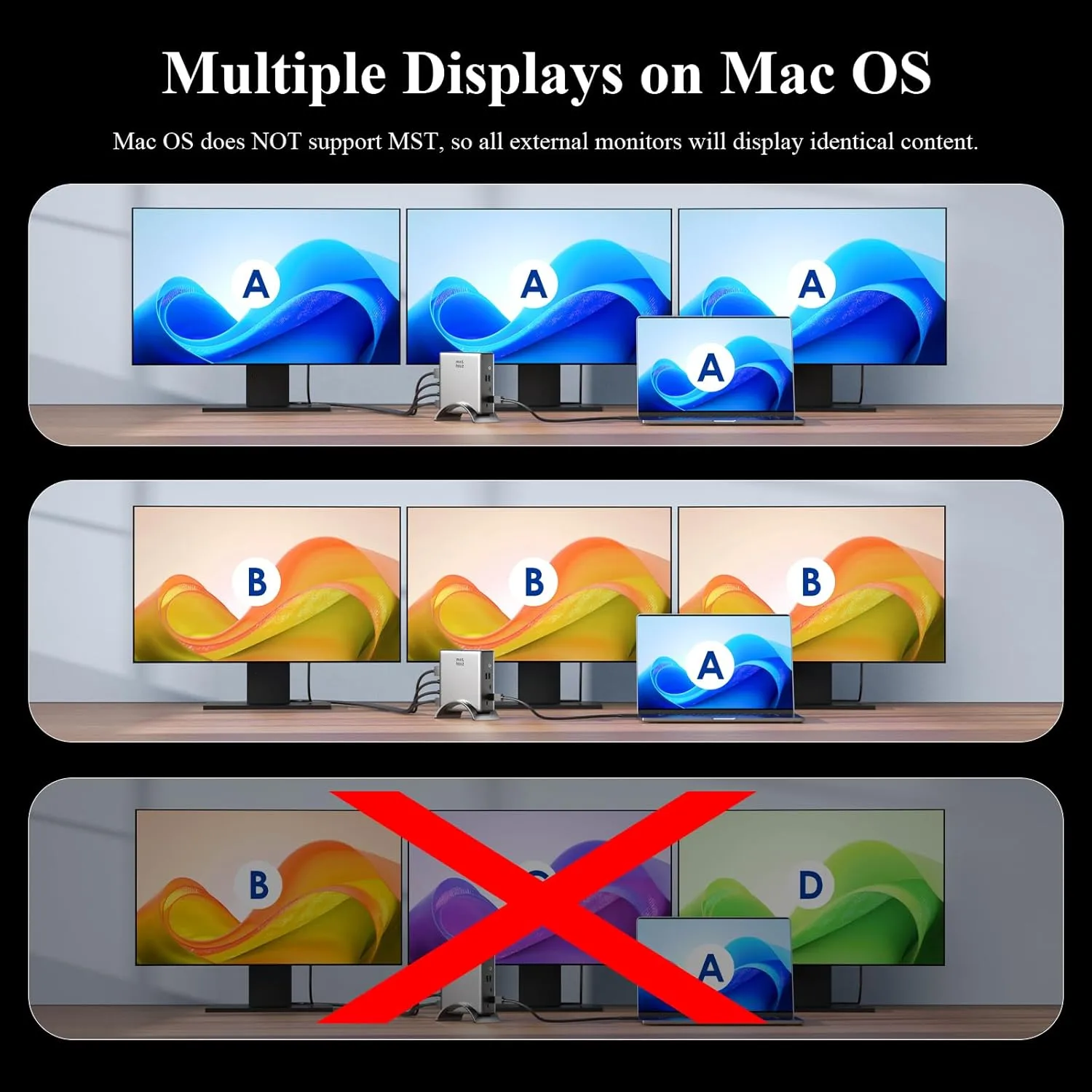

For Mac OS(only supports extend 1 external monitor with different content)
1)Single Display:
DP1.2: DP/HDMI1/HDMI2: 3840x2160@30Hz
DP1.4/ DP1.4 & DSC1.2: DP: 3840x2160@144Hz; HDMI1/HDMI2: 3840x2160@60Hz
2)Dual Display (DP+HDMI1/2 or Dual HDMI):
DP1.2: 3840x2160@30Hz+3840x2160@30Hz
DP1.4/ DP1.4 & DSC1.2: 3840x2160@60Hz+3840x2160@60Hz
3)Triple Display (DP+HDMI1+HDMI2):
DP1.2: 3840x2160@30Hz+3840x2160@30Hz+3840x2160@30Hz
DP1.4/ DP1.4 & DSC1.2: 3840x2160@60Hz+3840x2160@60Hz+3840x2160@60Hz
Specification:
1.Model: MT-UMD27 Pro

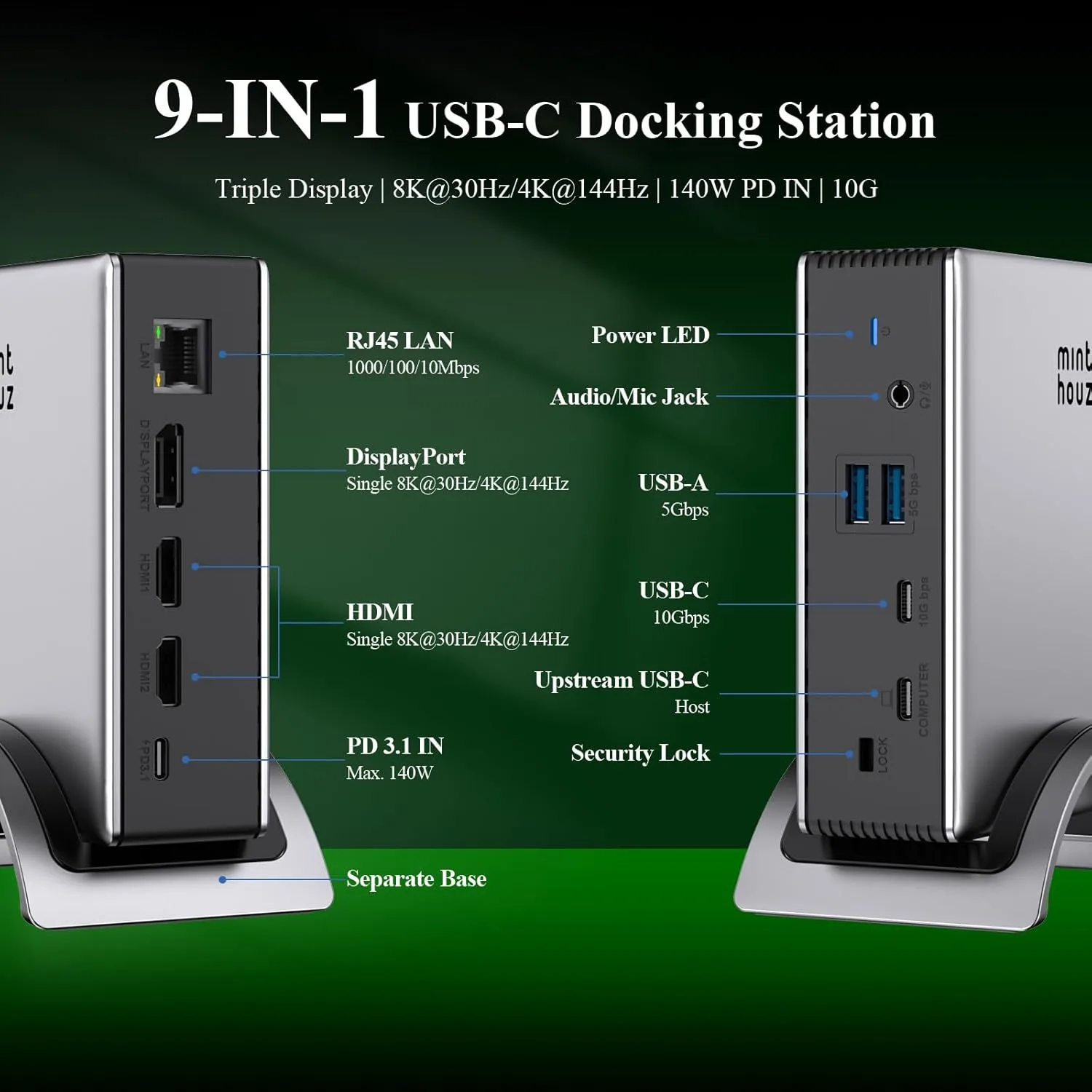

2.Ports: 1x RJ45(10/100/1000Mbps), 1 x DisplayPort(8K@30Hz or 4K@144Hz), 2 x HDMI Alt Mode(8K@30Hz or 4K@144Hz), 1x USB-C IN(140W Max.), 1x Audio/Mic Jack, 2 x USB-A 5Gbps, 1 x USB-C 10Gbps, 1x USB-C (Host, PD 125W), 1 x Kensington Lock

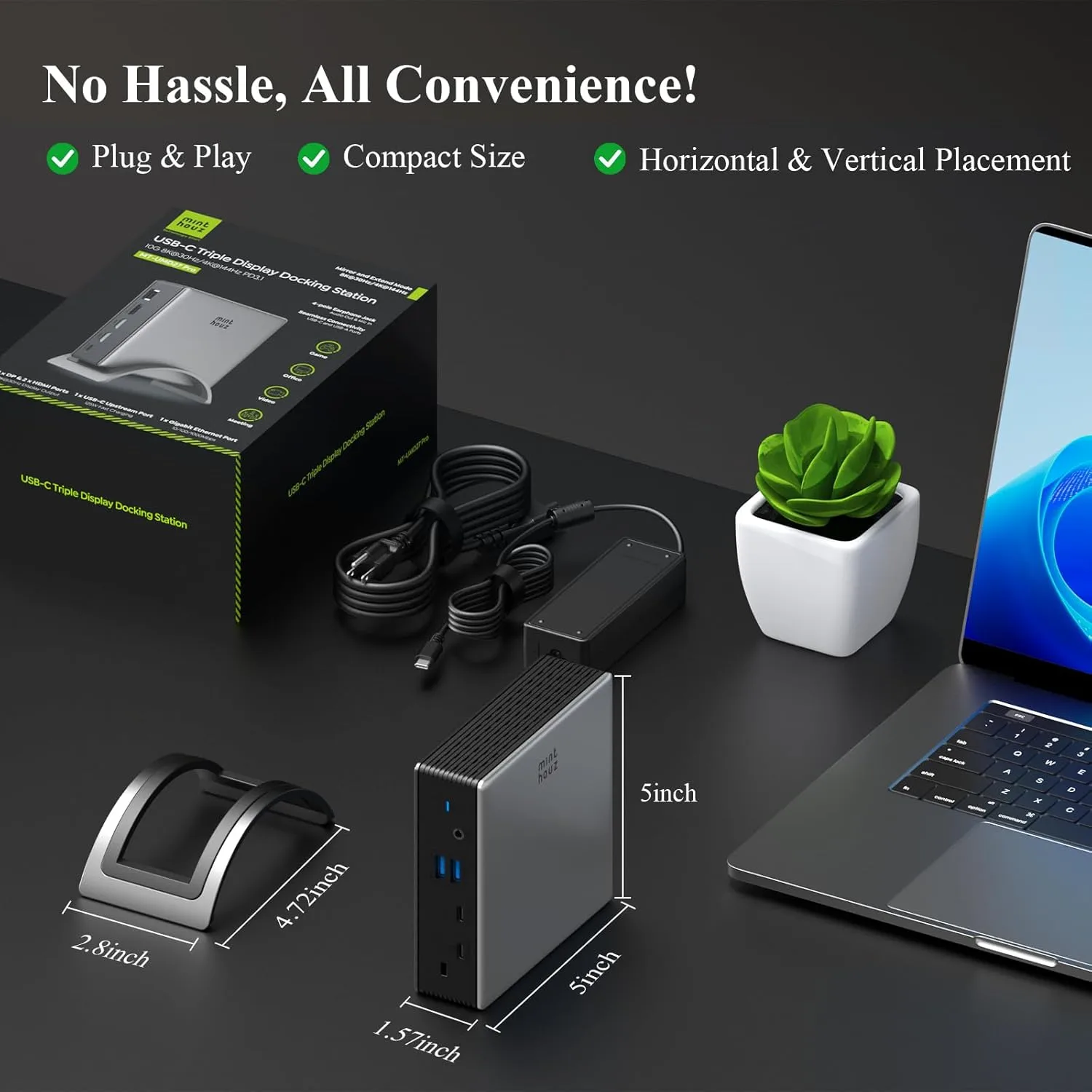

3.Unit Size: 12.3x6.6x17.2cm/4.8x2.6x6.8in (LxWxH)
4.USB-C to C Cable Length: 100cm/39.4in
5.Unit Weight: 445g/15.7oz

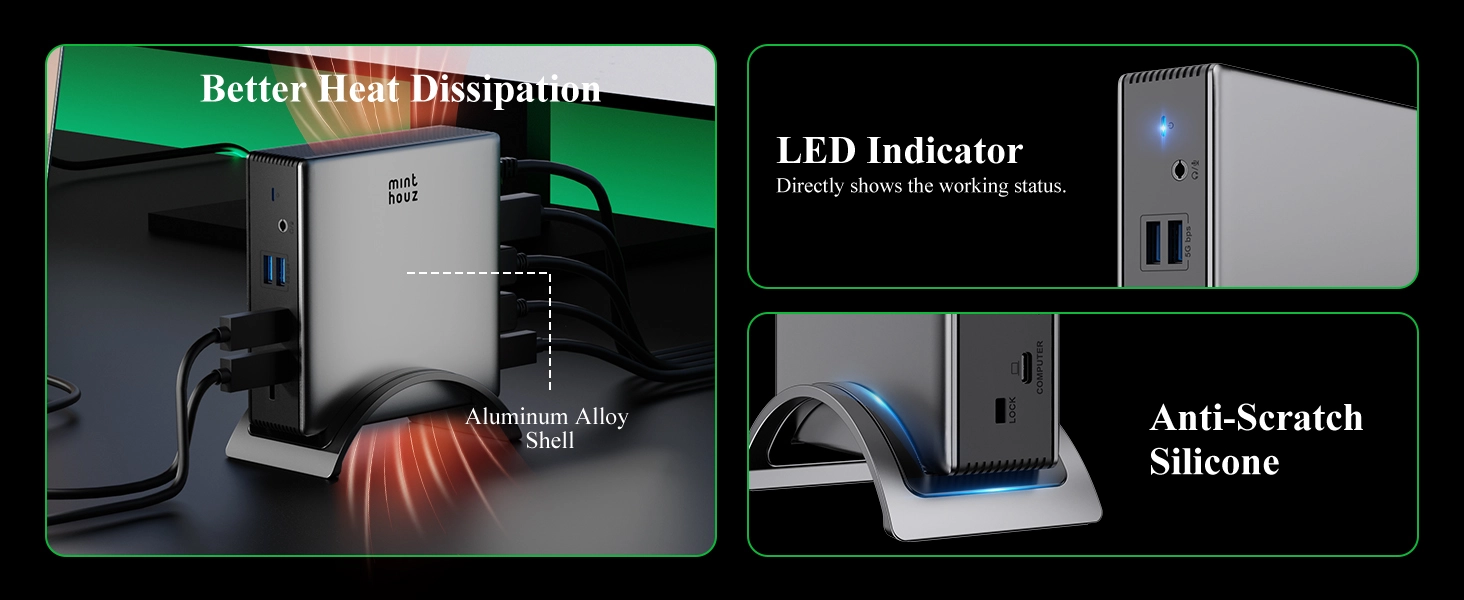

6.Housing Material: Aluminum + ABS Plastic
8.Power LED: Blue
Features
- Three video ports (2*HDMH+1*DisplayPort) work for triple display, and the resolution is up to single 8K(7680x4320)@30Hz or 4K(3840x2160)@144Hz.

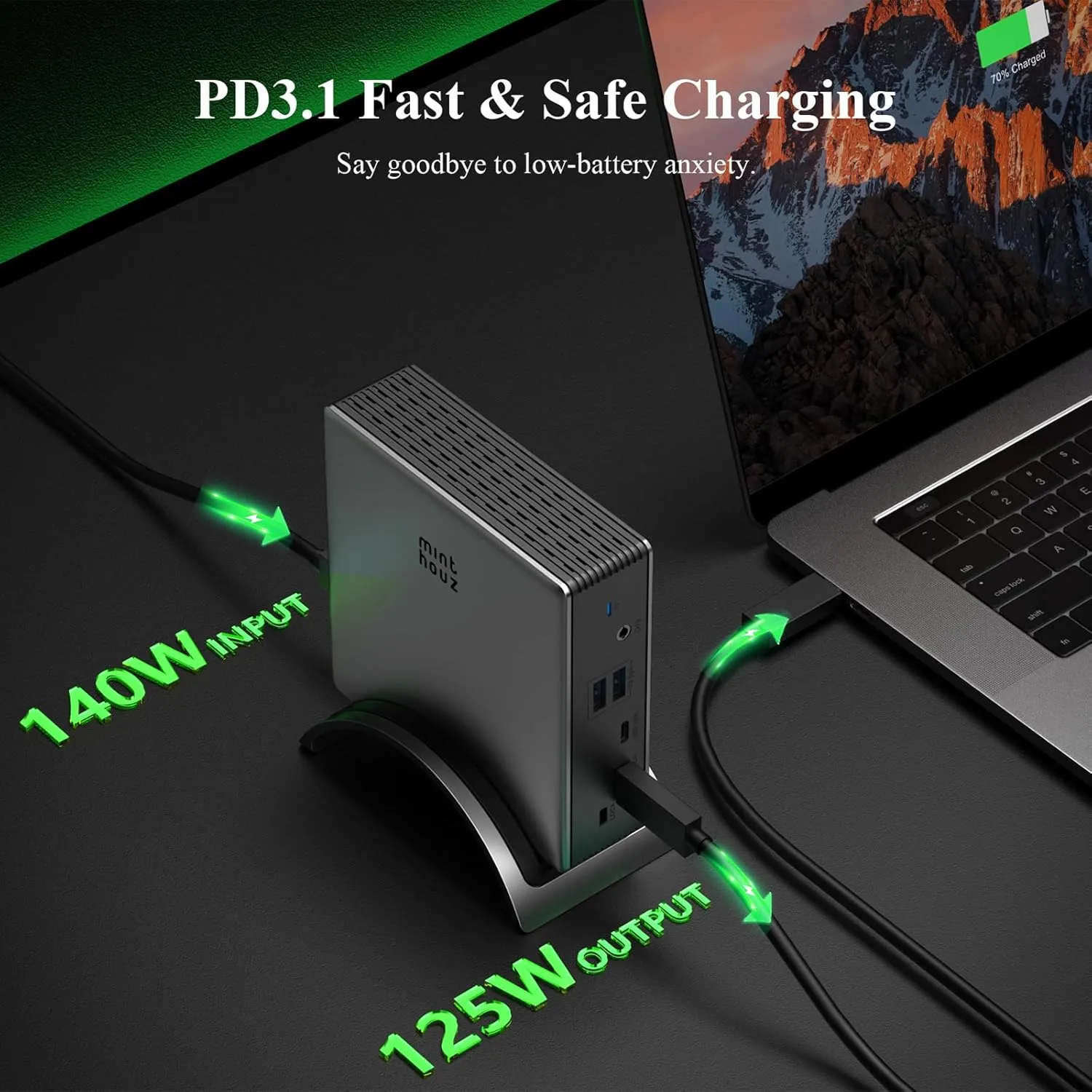

- One USB-C PD 3.1 IN provides 140W power delivery for the dock, and supports 125W upstream charging for the Host.
- One Gigabit Ethernet port provides stable and high speed wired network, and is backward compatible with 10/100Mbps network.
- Two USB-A transfer speed up to 5Gbps and are backward compatible with USB2.0/1.1
- One USB-C transfers speed up to 10Gbps and is backward compatible with USB3.0/2.0/1.1

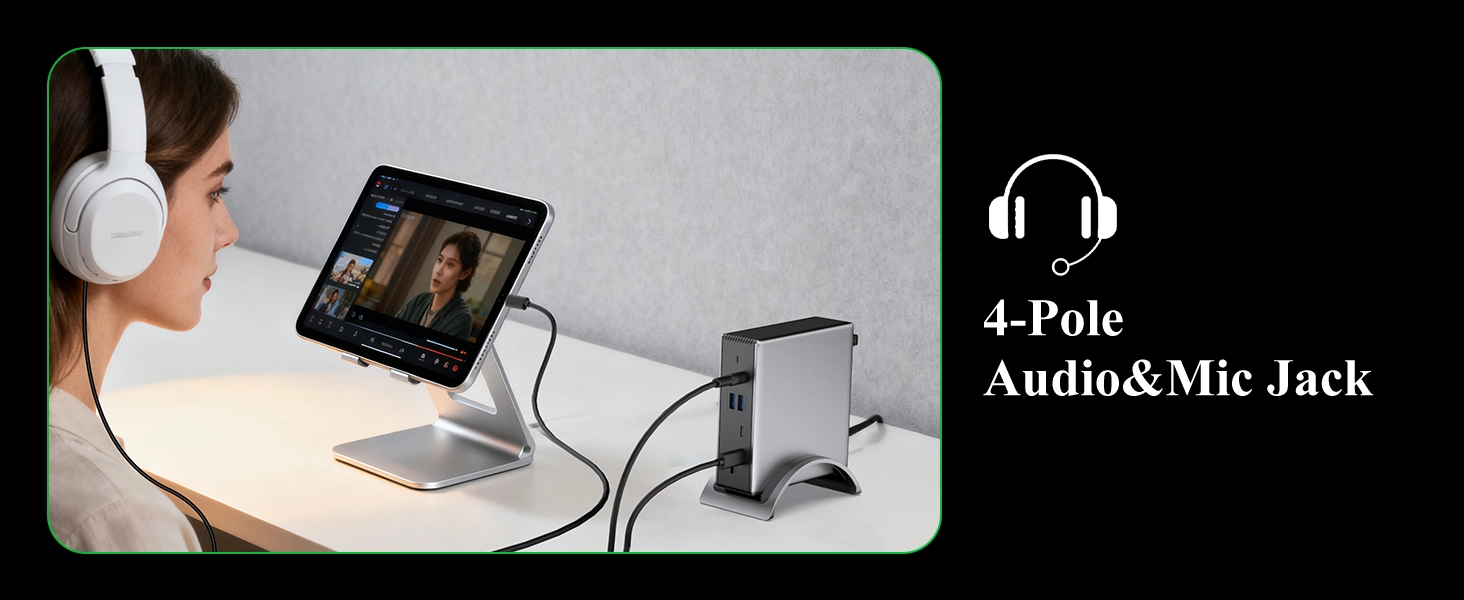

- One integrated TRRS 4-pole phone jack works for audio in/out.
In the Box
- 1 x USB-C Triple Display Docking Station
- 1x PD3.1 240W USB-C to USB-C Cable with E-mark (1m)
- 1 x AC Power Cable
- 1 x PD3.1 140W GaN Power Adapter
- 1 x Quick Start Guide
Warm Tips:
-Not compatible with 2017 MacBooks and before.
-The type-C port of your host should support video output and charging to enjoy the full function of this docking station.
-For Windows-based computer, please make sure that your computer graphics card supports four monitors, or you might have to disable the built-in monitor.

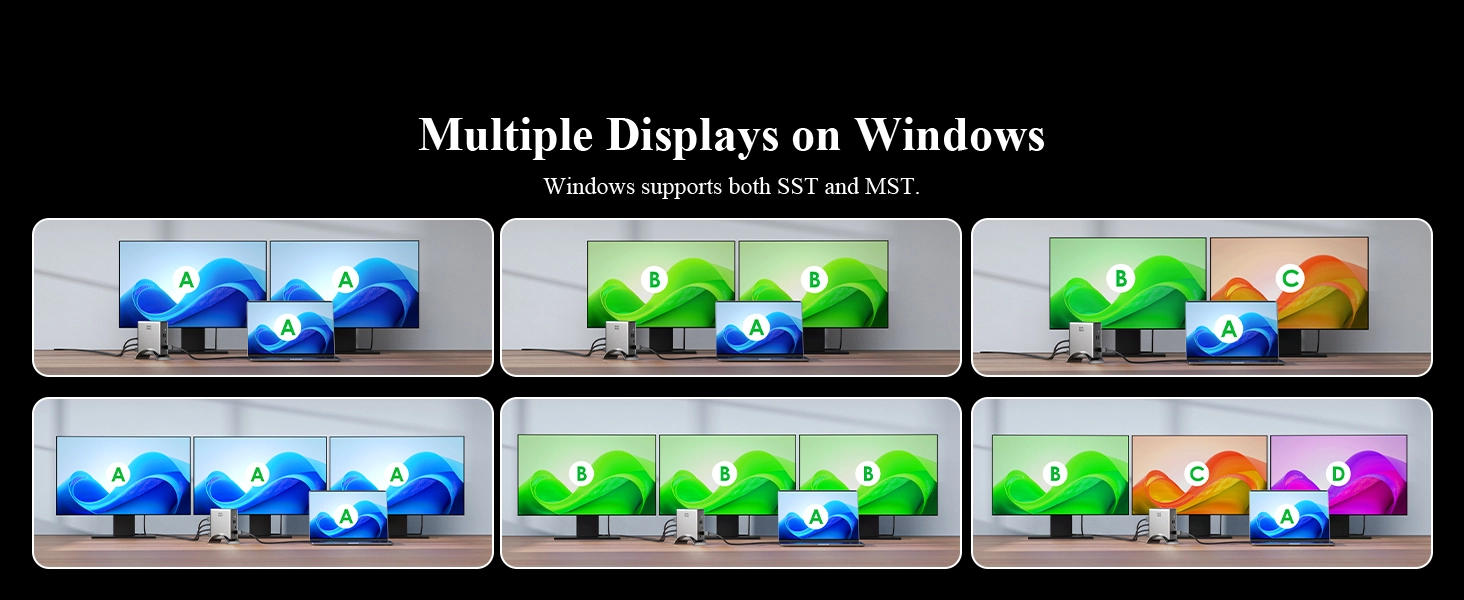

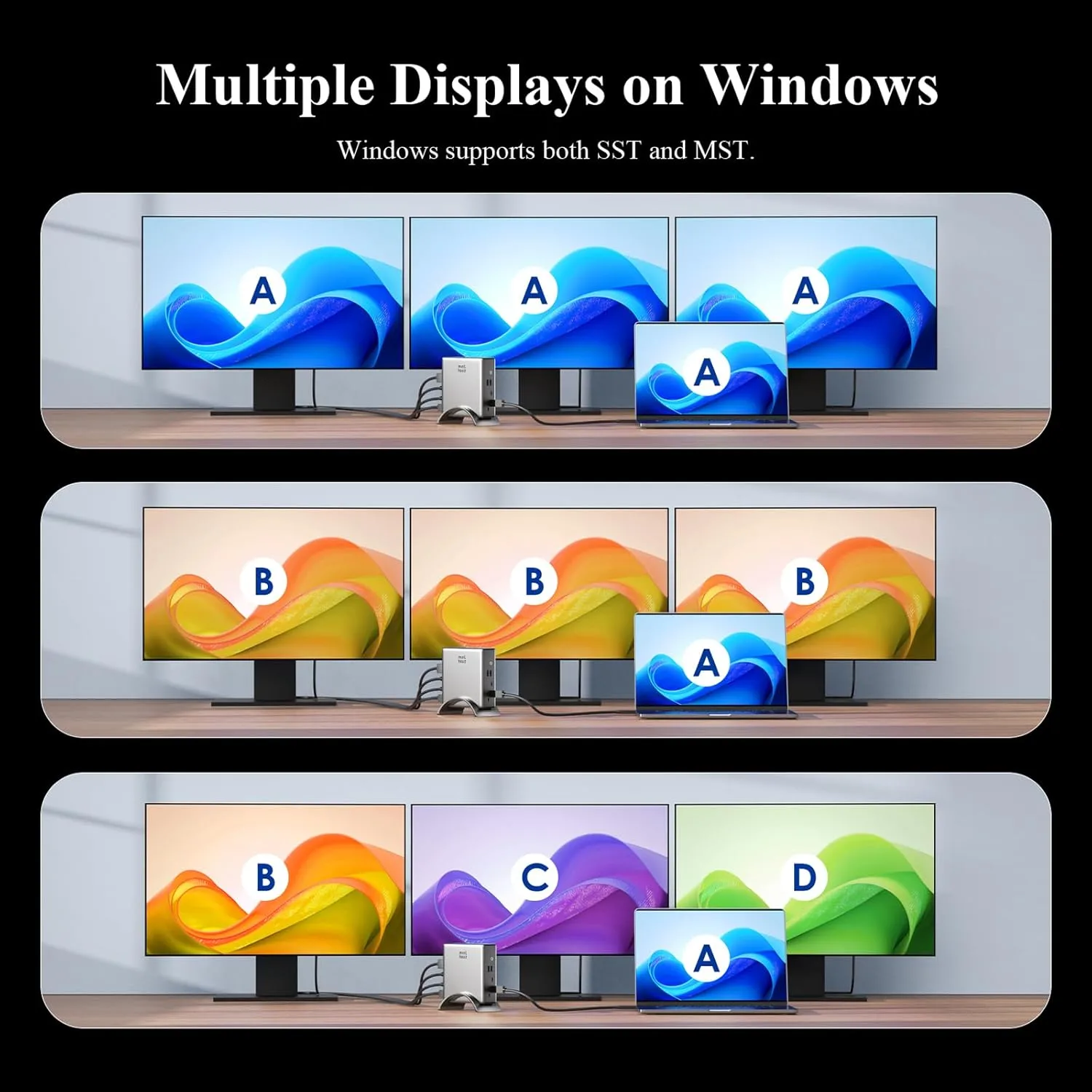

-Windows extends to three different screens (ABCD); Mac extends to one different screen (ABBB) while mirroring content on the others.
-Rotation Mode and Clamshell Mode are supported on both Windows and Mac OS.
-Supports HDCP; suitable for intensive tasks like gaming and video editing.
-Your USB-C phones/tablets should support the OTG function.
USB-C Devices Compatibility List (Partial):
Note: Please check the compatibility list below before purchasing. If your device is not on the list, please let us know and we will be glad to help you check with it.
Apple: Mac Studio 2022, iMac(2017, 2019, 2020), MacBook Pro 16-inch (2019, 2021)，MacBook Air 13-inch (2018, 2019, 2020)， MacBook Pro 13-inch (2016, 2017, 2018, 2019, 2020)，MacBook Pro 14-inch 2021, MacBook Pro 15-inch (2016, 2017, 2018, 2019);
Dell: XPS 13 7390 2-in-1 (Ice Lake), XPS 12 9250, XPS 13 9350, XPS 13 9360， XPS 13 9370, XPS 13 9380，XPS 15 9550 (Intel + Nvidia GPU), XPS 15 9550 (Intel GPU)， XPS 15 9560 (Intel + Nvidia GPU), XPS 15 9570, XPS 17 9700，XPS 12 XPS9250，Dell LATITUDE 7480, Alienware 13 R3, Alienware 15 R3, Alienware 17 R4, Dell Precision 15 M7510, Dell Precision 17 M7710, Dell XPS 13 9365, Dell Precision 15 5000 Series (5510), Dell Precision 15 3000 Series (3510), Dell Latitude 7370 (3C7XP), Dell Latitude 12 7275, Alienware 17 R3, Dell Precision M5510 15.6";
HP: EliteBook Folio G1 (Model V1C43EA), Spectre x360 Convertible 13-w000 (SKU W9A95AV), Spectre x360 - 13-ac003la, Spectre x360 - 15-ch000, Elite X2 1012 G1, HP Spectre x360 - 13-ae011dx (Late 2017)，Elite x2 1012 G2，HP Spectre x360 (2017)，HP EliteBook Folio G1 12.5", HP ZBook 15 G3, HP Zbook 17 G3 Workstation, HP ZBook Studio Series, HP Elite X2 1012 G1, HP Spectre x360 2-in-1 13-W023DX 13.3";
Intel: NUC8i7HVK (Hades Canyon), NUC8i7HNK (Hades Canyon), NUC9VXQNX (Ghost Canyon), Intel NUC9V7QNX (Ghost Canyon), Intel NUC9i9QNX (Ghost Canyon), Intel NUC9i7QNX (Ghost Canyon), Intel NUC9i5QNX (Ghost Canyon);
Lenovo: Thinkpad P50, Thinkpad P51, Thinkpad P70, Lenovo Yoga C930, Lenovo X1 Carbon 7th Gen, ThinkPad P70 Series Mobile Workstation, Lenovo Legion Y720, Lenovo ThinkPad T570, Lenovo Miix 720, Lenovo ThinkPad X1 Carbon (5th Gen 2017), Lenovo ThinkPad X1 Yoga (2nd Gen 2017), Lenovo ThinkPad P50;
Others: MSI VR Ready GS43VR Phantom Pro-006; ASUS ZenBook Pro UX501VW and more.
